HPP-S series full-automatic powder compacting press
【 Application 】
HPP-S series of presses are suitable for powder metallurgy,fine ceramics,magneticmaterials and relevant industry what need powder to suppressit,the powder products of the especially complicated form are done and keep compacting automatically.
【 Characteristics 】
(1) The supress action of the upper punch adopt the link mecha nism that suitable for the characteristic of powder suppress,it has offered abundant suppressing times, the request mobile to the powder is reduced to some extent too .
(2) Adopt the die floating technology and regular ejection posi tion principle,the seat of the products that come out from press is constant.It can be pressed 3 times unmeanwhile( pressed in advance,pressed in step with and upper pres- sed).
(3) The pressure of the upper punch protect the knockout can beregulated,it h-elps dispel the products crack because of expand at the ejection.
(4) To suppress stroke,ejection stroke,pressed in advance stroke loading height and running speed.etc.parameter can be stepless changed,and have scale instrutions.
(5) There is the underfill(ouerfill)feeding function on the regular strock,can prevent the powder from spraying and guaran teeing to feed steadily.
(6) These series of presses can dispose various die set,can meet the needs of the compacting request for many steps and complex mode products.
(7) These series of presses adopt the intellectual man-machine interface,PLC and a large amount of advanced technology and import components and parts,so the press is convenient to adjust and control.
(8) The presses have implemented the safety measures,and consider the safety of operating personal and attendant as fully as possible.The protective device accords with the latest security.
(9) The presses have many functions for choose:the manipula tor,pneumatic core rodand special core rod jigger.
(10) The structure of press is simple and clear,the automatic degree is high,there are few troubles,it is simple to main tain,and it is especially suitable for suppress the precision and complicated products.
(2) Adopt the die floating technology and regular ejection posi tion principle,the seat of the products that come out from press is constant.It can be pressed 3 times unmeanwhile( pressed in advance,pressed in step with and upper pres- sed).
(3) The pressure of the upper punch protect the knockout can beregulated,it h-elps dispel the products crack because of expand at the ejection.
(4) To suppress stroke,ejection stroke,pressed in advance stroke loading height and running speed.etc.parameter can be stepless changed,and have scale instrutions.
(5) There is the underfill(ouerfill)feeding function on the regular strock,can prevent the powder from spraying and guaran teeing to feed steadily.
(6) These series of presses can dispose various die set,can meet the needs of the compacting request for many steps and complex mode products.
(7) These series of presses adopt the intellectual man-machine interface,PLC and a large amount of advanced technology and import components and parts,so the press is convenient to adjust and control.
(8) The presses have implemented the safety measures,and consider the safety of operating personal and attendant as fully as possible.The protective device accords with the latest security.
(9) The presses have many functions for choose:the manipula tor,pneumatic core rodand special core rod jigger.
(10) The structure of press is simple and clear,the automatic degree is high,there are few troubles,it is simple to main tain,and it is especially suitable for suppress the precision and complicated products.

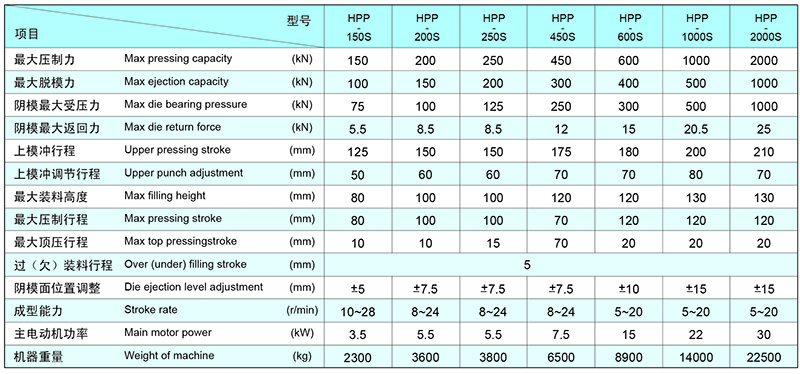

【 Technical Specification 】
